| Descripción |
|

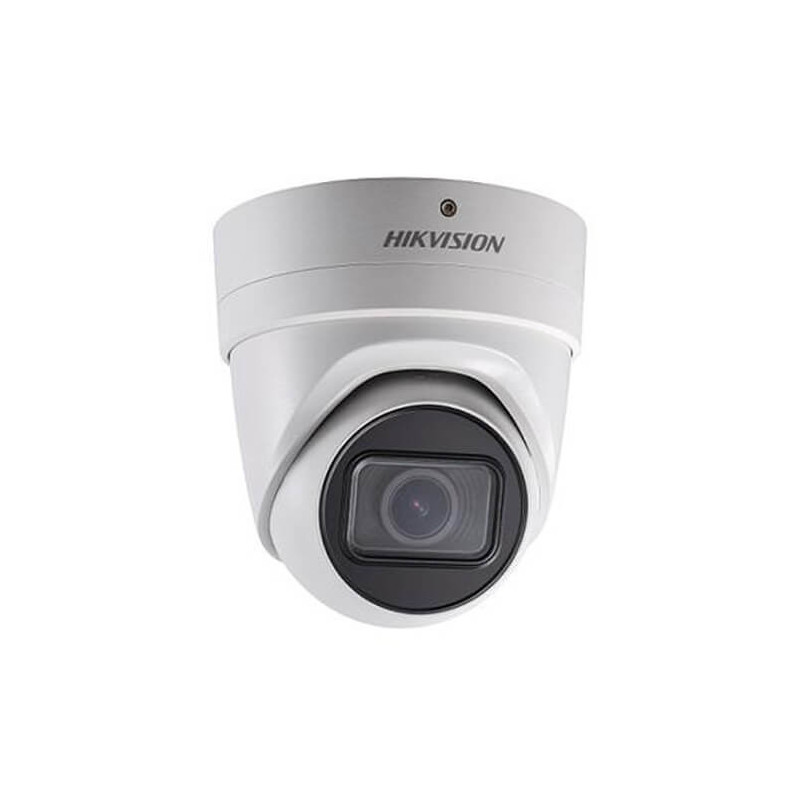

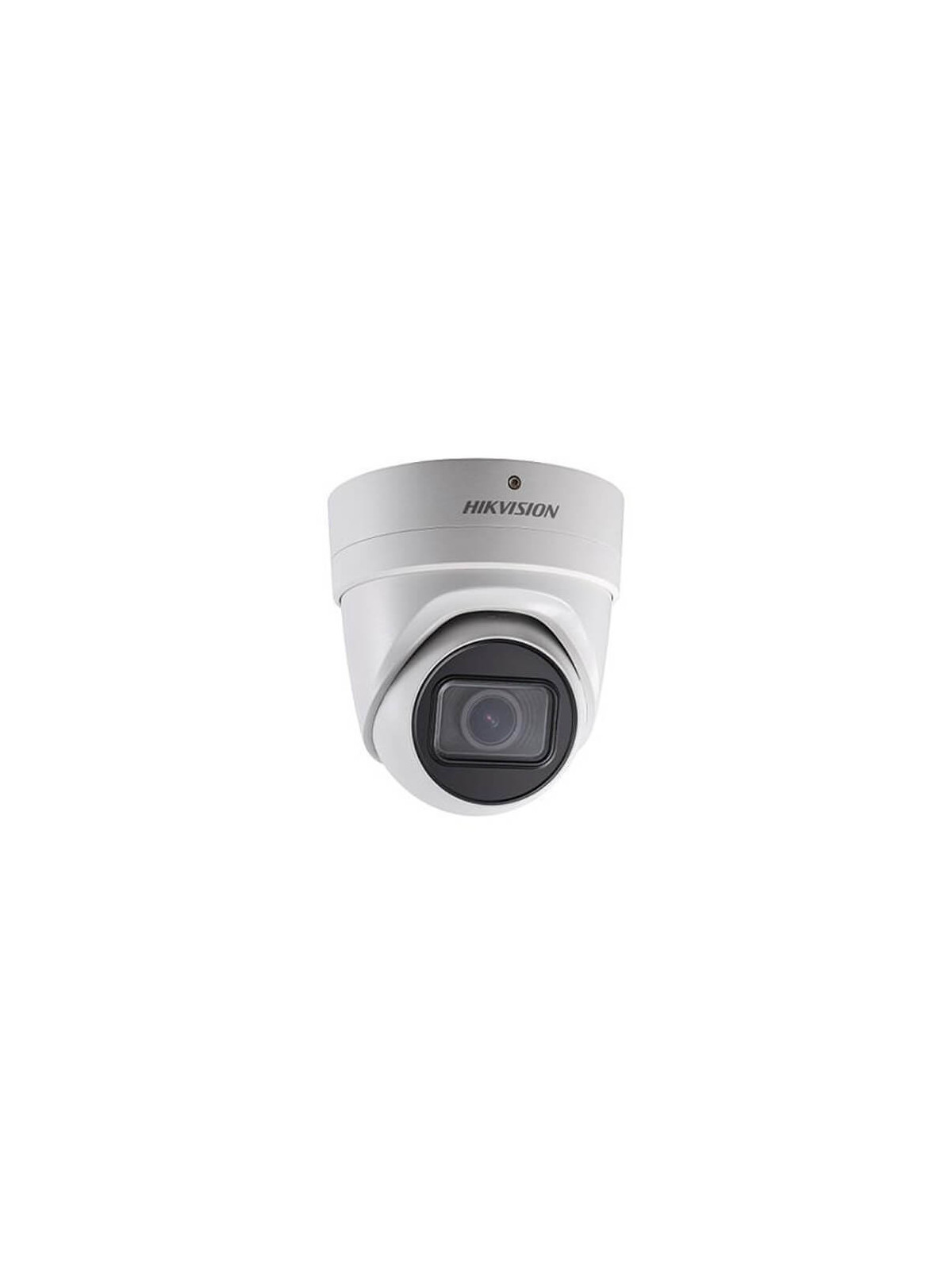

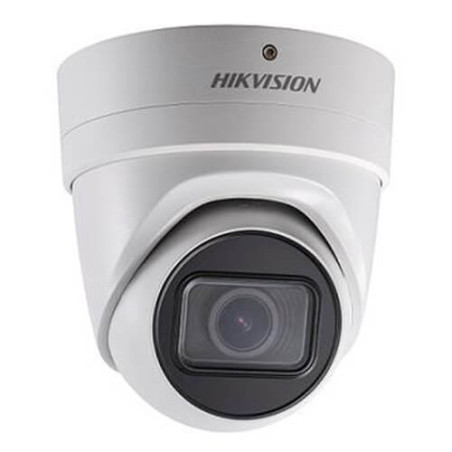

Domo IP Hikvision DS-2CD2H23G0-IZS 2MP PRO IR30m 2.8-12mm motorizada H265+ POE SD WDR Audio Alarmas
Cámara minidomo turret de tecnología IP y resolución 2 Megapixeles (1920x1080@25ips). Óptica varifocal 2.8-12mm motorizada. Compresión H.265+/H.265/H.264+/H.264.
Sensor CMOS 1/2.8" con escaneado progresivo.
Conmutación día/noche mediante filtro mecánico.
Sensibilidad en color 0,01 Lux Color (F1.2, AGC ON).
LEDS IR alcance 30m.
WDR real 120dB, BLC, Defog, EIS, 3D DNR, ROI.
-Especificaciones de red:
Salida Ethernet 10/100Mbps
Triple streaming de video
Servidor Web integrado Internet Explorer
Compatible con ONVIF, ISAPI.
Soporta tarjeta SD hasta 128GB ( tarjeta no incluida).
-Detección:
Básica: movimiento, tamper de vídeo, excepciones.
Avanzada: intrusión, cruce de línea, detección de rostro básica.
- Especificaciones generales:
Alarmas: 1 entrada y 1 salida, audio: 1 entrada y 1 salida.
Nivel de protección: IP67, antivandálico IK10.
Instalación en exterior.
Alimentación 12 VDC max 850mA y PoE (802.3 af).
Dimensiones: Ø 135.8 × L 145.5 mm.
|
|
| Características técnicas |
- Camera
- Image Sensor - 1/2.8" Progressive Scan CMOS
- Min. Illumination - Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed - 1/3 s to 1/100,000 s
- Slow Shutter - Yes
- Wide Dynamic Range - 120dB
- Day & Night - IR Cut Filter
- Angle Adjustment - Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Focus - Auto
- Lens Type - 2.8 to 12 mm，Motorized
- FOV - horizontal FOV: 110° to 31°,vertical FOV: 58° to 18°,diagonal FOV: 136° to 36°
- Aperture - F1.6
- Lens Mount - Φ14
- Aperture Type - Fixed
- Illuminator
- IR Range - Up to 30 m
- Wavelength - 850nm
- Video
- Max. Resolution - 1920 × 1080
- Main Stream - 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub Stream - 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240),
- Third Stream - 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
- Video Compression - Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- Video Bit Rate - 32 Kbps to 16 Mbps
- H.264 Type - Main Profile/High Profile
- H.265 Type - Main Profile
- H.264+ - Main stream supports
- H.265+ - Main stream supports
- Scalable Video Coding (SVC) - H.264 and H.265 encoding
- Region of Interest (ROI) - 1 fixed region for main stream and sub-stream
- Audio
- Environment Noise Filtering - Yes
- Audio Sampling Rate - 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression - G722.1/G.711/G726/MP2L2/PCM/MP3
- Audio Bit Rate - 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
- Network
- Simultaneous Live View - Up to 6 channels
- API - ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
- Protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- User/Host - Up to 32 users,3 levels: Administrator, Operator and User,
- Security - Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Network Storage - Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- Client - iVMS-4200, Hik-Connect, Hik-Central
- Web Browser - Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
- Alarm Trigger - Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Wi-Fi
- Encryption Mode - Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Image
- Day/Night Switch - Day/Night/Auto/Schedule/Triggered by Alarm In
- Target Cropping - No
- DNR - 3D DNR
- Image Enhancement - BLC/3D DNR/HLC
- Image Settings - Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
- Interface
- Audio - 1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
- Alarm - 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
- Video Output - No
- On-board Storage - Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware Reset - Yes
- Communication Interface - 1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Basic Event - Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event - Line crossing detection, intrusion detection, face detection
- General
- Linkage Method - Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
- Web Client Language - 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General Function - One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Startup and Operating Conditions - -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
- Power Supply - 12 VDC ± 25%, terminal block ,PoE (802.3af, class 3),
- Power Consumption and Current - 12 VDC, 0.85A, max. 10W,PoE (802.3af, 36V to 57V), 0.35A to 0.2A, max. 12.5W,
- Camera Dimension - Φ 135.8 × 145.5 mm (Φ 5.4" × 5.7")
- Camera Weight - Camera: Approx. 1200 g (2.6 lb.),With Package: Approx. 1580 g (3.5 lb.)
- Approval
- Protection - IP67, IK10
|
|
|
