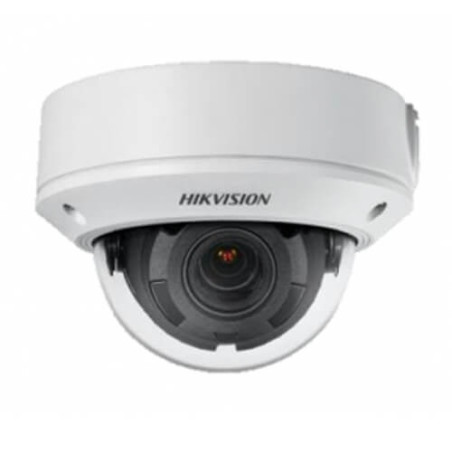

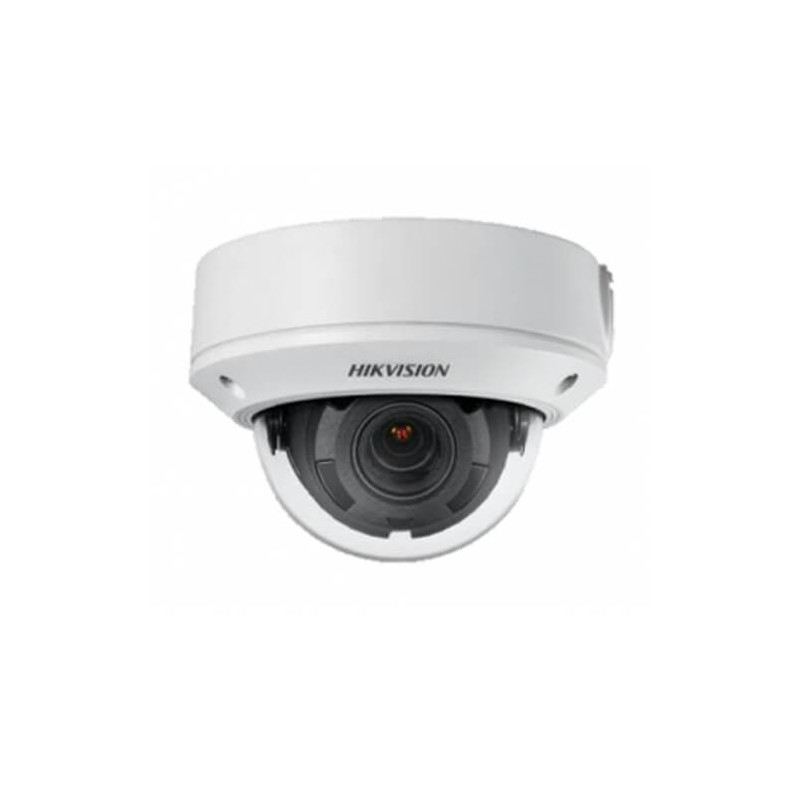

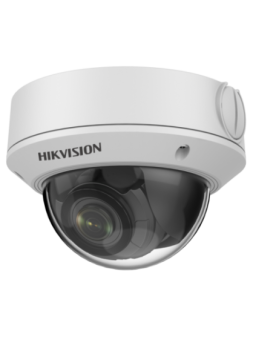

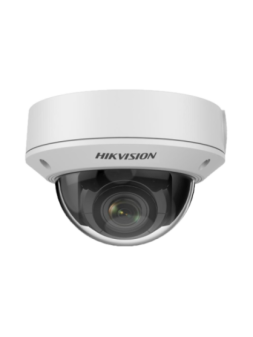

Domo IP Hikvision DS-2CD1743G0-IZ 4MP ECO IR30m 2.8-12mm motorizada H265+ POE SD

• Camera
• Image Sensor - 1/3" progressive scan CMOS
• Min. Illumination - Color: 0.01 Lux @(F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON)
• Shutter Speed - 1/3 s to 1/100, 000 s, support slow shutter
• Slow Shutter - Yes
• Day &Night - IR cut filter
• Wide Dynamic Range - 120 dB
• Angle Adjustment - Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 360°
• DNR - 3D DNR

• Lens
• Lens - 2.8 to 12 mm
• Auto-Iris - No
• Aperture - F1.6
• Focus - -I: Manual,-IZ: Auto
• FOV - Horizontal field of view: 98° to 28°,Vertical field of view: 51° to 16°,Diagonal field of view: 115° to 32°
• Lens Mount - Φ14

• Illuminator
• IR Range - Up to 30 m
• Wavelength - 850 nm

• Video
• Max. Resolution - 2560 × 1440
• Video Compression - Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
• H.264 Type - Baseline Profile/Main Profile/High Profile
• H.265 Type - Main Profile
• Video Bit Rate - 32 Kbps to 8 Mbps

• Smart Feature-Set
• Region of Interest - 1 fixed region for main stream and sub-stream

• Image
• Image Enhancement - BLC, 3D DNR
• Image Setting - Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch - Auto, scheduled
• Main Stream Max. Frame Rate - 50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720),60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub-stream Max. Frame Rate - 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

• Network
• Network Storage - Support Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR
• Protocols - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• API - ONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live View - Up to 6 channels
• User/Host - Up to 32 users,3 levels: Administrator, Operator and User
• Client - iVMS-4200, Hik-Connect, iVMS-5200
• Web Browser - IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
• Alarm Trigger - Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login

• Interface
• Communication Interface - 1 RJ45 10M/100M self-adaptive Ethernet port
• Video Output - 1Vp-p composite output (75 Ω/BNC)

• General
• Firmware Version - 5.5.3
• General Function - One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Reset - Yes
• Startup and Operating Conditions - -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
• Power Supply - 12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
• Material - Metal & Plastic
• Dimensions - Camera: Φ 141 mm × 99.9 mm (5.6" × 3.9"),With package: 140 mm × 140 mm × 154 mm (5.5" × 5.5" × 6.1")
• Weight - Camera: approx. 820 g (1.8 lb.),With package: approx. 1200 g (2.6 lb.)
• Power Consumption and Current - -IZ: 12 VDC, 0.8 A, Max: 10 W; PoE: (802.3af, 36 V to 57 V), 0.35 A to 0.2 A, Max: 12 W,-I: 12 VDC, 0.5 A, Max: 6 W; PoE: (802.3af, 36 V to 57 V), 0.22 A to 0.14 A, Max: 8 W
• Interface Protection - IP67

• Approval
• Impact Protection - IK10 TVS 2000V lightning protection, surge protection and voltage transient protection

• Compression Standard
• H.264+ - Main stream supports
• H.265+ - Main stream supports
